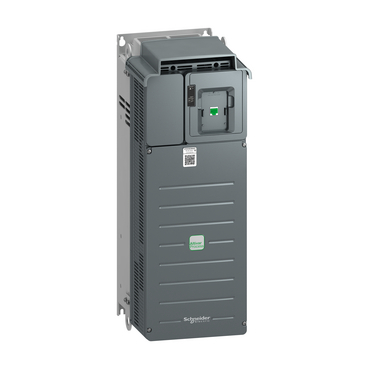

Schneider Frequency Inverter Easy Altivar ATV610D30N4ZC
Main Information
- Product Series: Easy Altivar 610
- Product Type: Frequency Inverter
- Application Type: Fans, Pumps, Compressors, Conveyor Belts
- Product Short Name: ATV610
- Variant: Standard Version
- Motor Type:
- Asynchronous Motor
- Synchronous Motor
- Mounting Type: Cabinet Mounting
- EMC Filter: Integrated, compliant with IEC 61800-3, Safety Class C3, and maximum 50 m motor cable
- IP Protection Class: IP20
- Cooling Method: Forced Ventilation
- Supply Frequency: 50...60 Hz +/ - 5 %
- Number of Network Phases: 3 phases
- Supply Voltage: 380...460 V - 15...10 %
- Motor Power (kW):
- 45 kW, applicable for standard load
- 37 kW, applicable for heavy load
- Motor Power (hp):
- 60 hp, applicable for standard load
- 50 hp, applicable for heavy load
- Line Current:
- 92.9 A at...380 V (standard load)
- 82.7 A at...460 V (standard load)
- 80.5 A at...380 V (heavy load)
- 69.6 A at...460 V (heavy load)
- Prospective Line Isc: 22 kA
